Don’t Let Scope Gaps Derail Your Point Cloud Survey

Why Getting the Scope Right Upfront Matters

Point cloud surveys are powerful tools, but only when the scope is clearly defined from the start. As a Project Manager, missing even a small detail at the briefing stage can lead to major issues later on.

This checklist will help you make sure nothing important is overlooked before a survey begins.

A Common Situation We See on Projects

A client requests a point cloud survey for a building but forgets to include key elements such as:

  • Roof voids
  • External facades
  • Plant areas or service spaces

These gaps are often only discovered once delivery is already underway.

Point Cloud Survey Scope

What Happens When Scope Is Unclear

When important areas are missed, the impact is immediate:

  • Scope creep as additional areas need to be captured
  • Cost increases due to extra site visits or processing time
  • Programme delays as timelines shift to accommodate changes

All of this can be avoided with better upfront clarity.

Step 1: Make Sure Every Area Is Defined

Be explicit about every space that needs to be captured.

Ask yourself:

  • Are all internal areas included, such as rooms, corridors, and plant rooms

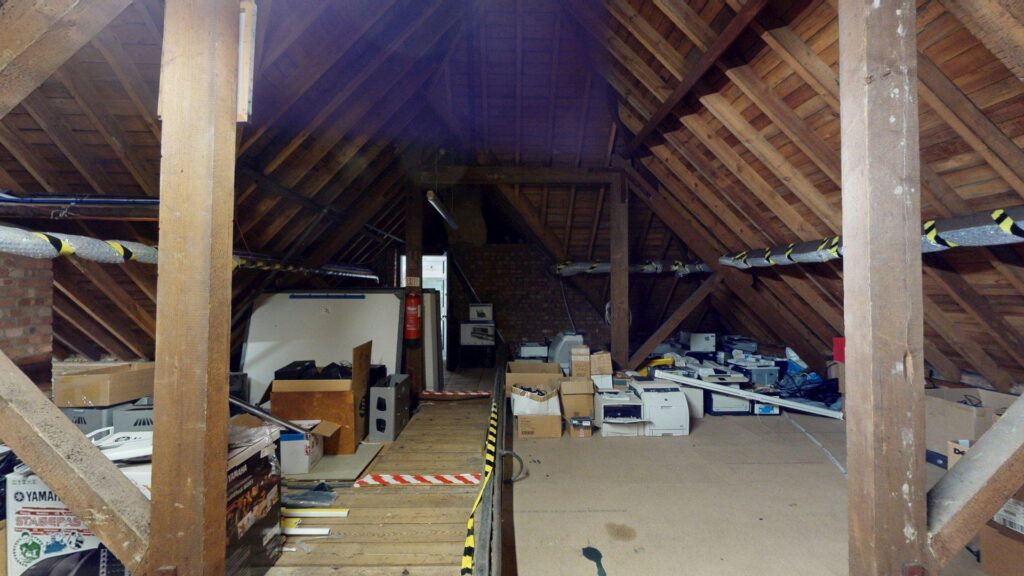

  • Are voids covered, including ceiling voids, floor voids, and risers
  • Are external areas required, such as façades, roofs, and surrounding context

Tip: If it might be needed later, include it now.

Point Cloud Scope

Step 2: Be Clear on What You Need Delivered

Different projects require different outputs, so expectations must be aligned early.

Confirm:

  • Do you need just a point cloud or also 2D drawings
  • Is a 3D model such as BIM required
  • What file formats are needed, for example CAD, Revit, or IFC

Tip: Define outputs in writing to avoid assumptions.

Step 3: Agree on the Right Level of Detail

The level of detail directly affects cost, time, and usability.

Decide:

  • Is the survey for concept design or detailed construction

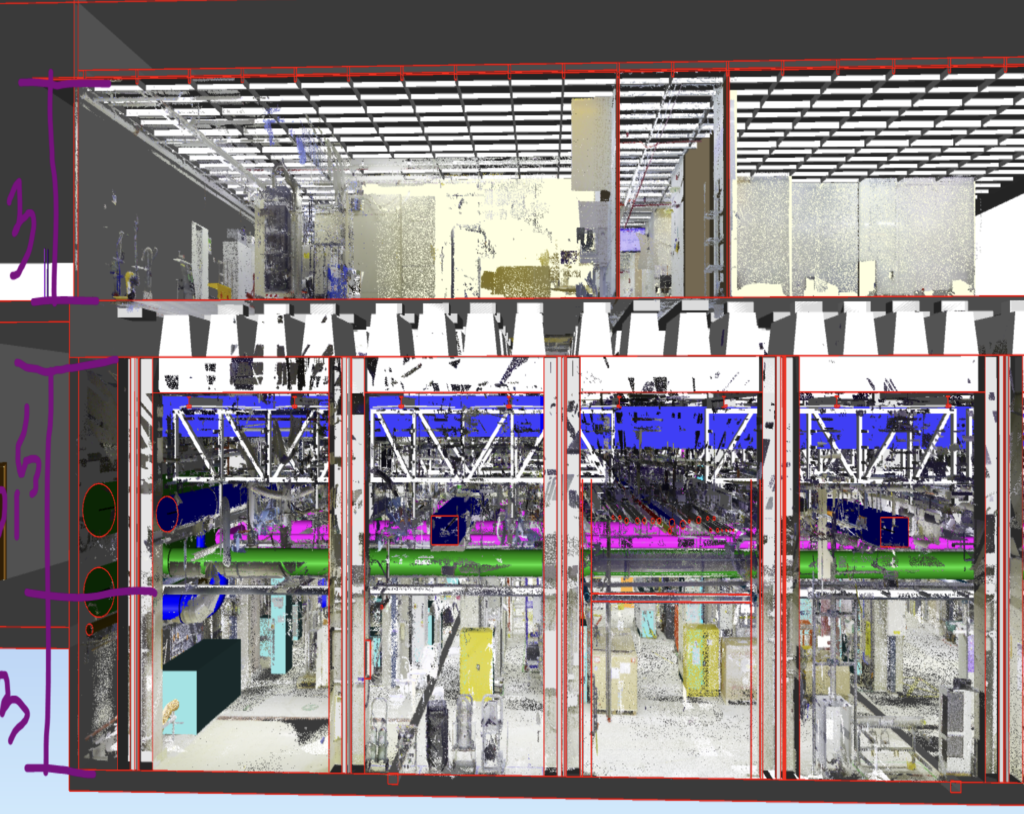

  • Are fine details like services and fixtures required
  • What level of accuracy is necessary

Tip: Higher detail means higher cost, so request only what you truly need.

Point Cloud Survey Scopes

How Scene3D Helps You Stay in Control

At Scene3D, we work closely with Project Managers to define survey scopes clearly from the outset, helping you avoid unexpected costs and delays.

Clear scope means fewer surprises and a smoother project from start to finish. Contact our team today for more help.
