Measured Building Survey with CAD Drawings
We point cloud survey your existing building and deliver accurate, planning-ready 2D CAD drawings – including floor plans, elevations, sections and more
Accurate as-built data capture
Missing Drawings? Old PDFs? Design Delays?
Most retrofit or development projects lack accurate plans – or the only files available are outdated and unusable.
“There are no existing drawings to work from.”
“The only plans we have are outdated PDFs with no dimensions.”
“We lost days going back to site just to double-check measurements.”
We help you avoid these common frustrations by turning your building into clean, measured CAD drawings you can trust – all produced from a high-accuracy point cloud survey.
A high standard, effective and efficient measured survey
2D Architectural Drawings from Point Cloud Surveys

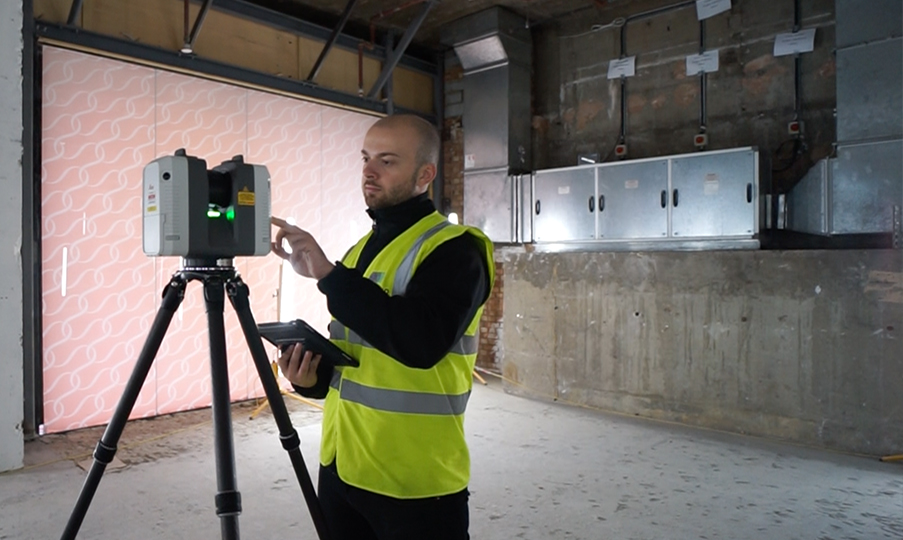

We capture your building in detail using 3D laser scanning technology and convert the resulting point cloud into accurate CAD outputs to suit your needs – including:
- Floor plans
- Elevations
- Sections
- Topographic site plan
All delivered in DWG and PDF formats – ready for planning applications or early-stage design.
Compatible with AutoCAD, Revit, and all major design platforms.
How Much Do Scan to CAD Drawings Cost?
There’s no fixed price – and that’s a good thing. Every project is different. But we’ll always give you a fast, transparent quote based on:
- Size of building (m² scanned)
- Site access and complexity
- Type & number of drawings needed
Typical project range: £1,500–£5,000+
Want the full breakdown?
Trusted By
Scan to CAD FAQ’s
Our most frequently asked questions
A Scan to CAD survey is the process of converting 3D laser scan data into accurate 2D CAD drawings.
Using professional laser scanning equipment, such as the Leica RTC360, millions of measurements are captured across a building or site to create a detailed point cloud. This data is then used to produce accurate CAD drawings that reflect the existing building layout and geometry.
Scan to CAD drawings are commonly used by architects, engineers, contractors and property professionals who require reliable existing building information for design, planning and refurbishment projects.
Typical outputs include floor plans, elevations, sections, roof plans and site plans, all produced from the same point cloud survey data.
The accuracy of Scan to CAD drawings is directly linked to the quality of the underlying point cloud survey.
By using 3D laser scanning technology, millions of measurements are captured across the building, providing a highly accurate digital record of existing conditions. This allows CAD drawings to be produced with a level of detail and reliability that is often difficult to achieve using traditional manual survey methods.
The exact accuracy achieved will depend on factors such as the survey methodology, building complexity and project requirements. If a specific tolerance is required, this can be discussed during the quotation stage to ensure the appropriate survey approach is adopted.
Yes. Floor plans, elevations and sections are among the most commonly requested Scan to CAD deliverables and can be produced from the same point cloud survey.
Depending on the requirements of your project, we can also provide roof plans, site plans and other architectural drawings derived from the survey data.
All drawings are produced using the captured point cloud as a reference, helping to ensure the finished outputs accurately reflect the existing building.
Drawings are typically delivered in both DWG and PDF formats, making them compatible with AutoCAD and other major design platforms.
Yes. If you already have point cloud data from a previous survey, we can often produce CAD drawings without the need for an additional site visit.
We regularly work with point cloud data captured by other survey companies, architects, contractors and asset owners. Common file formats include RCP, RCS, E57 and other industry-standard point cloud formats.
Before starting, we will review the quality and coverage of the data to ensure it is suitable for producing the required CAD drawings.
This approach can often save time and cost compared to commissioning a new survey.
Every project is different and the programme will depend on the size, complexity and deliverables required.
Smaller projects may be completed within a few working days, whilst larger commercial, industrial or heritage buildings may require additional time for processing and drawing production.
As a general guide, most Scan to CAD projects are delivered within one to three weeks following the site survey.
Where deadlines are critical, we will always discuss programme requirements during the quotation stage and advise whether accelerated delivery is possible.
In most cases, a brief project description, site address and an outline of the required deliverables is enough for us to provide a quotation.
If available, existing drawings, photographs, site plans or project specifications can also be helpful in understanding the scope of work.
We may ask additional questions regarding building access, project timescales and the intended use of the drawings to ensure the survey and deliverables are appropriate for your requirements.
If you’re unsure exactly what information is needed, our team will guide you through the process.
Yes. Scan to CAD drawings are commonly used as the foundation for planning applications, building regulations submissions and architectural design projects.
By starting with an accurate point cloud survey, architects and designers can work from reliable existing building information rather than relying on outdated drawings or manual site measurements. This helps reduce errors and provides greater confidence during the design process.
Depending on your project requirements, we can produce a range of CAD drawings suitable for planning and design purposes, including floor plans, elevations, sections, roof plans and site plans. All drawings are delivered in DWG and PDF formats, making them compatible with AutoCAD and other major design platforms.
Scan to CAD drawings are regularly used for residential extensions, commercial refurbishments, change of use applications, heritage projects and wider property development schemes.
If you’re unsure what drawings are required for your planning application, our team can advise based on your project and the information requested by your architect, designer or local planning authority.
Our survey team operates throughout the United Kingdom.
We regularly undertake Scan to CAD projects across England, Scotland, Wales and Northern Ireland, supporting architects, engineers, contractors, property owners and facilities management teams.
Projects range from residential properties and commercial offices through to hospitals, industrial facilities, educational buildings and heritage sites.
Any travel requirements will always be discussed during the quotation process, ensuring there are no unexpected costs later in the project.
Whether your project is located in Sheffield, London, Manchester, Birmingham, Edinburgh or elsewhere in the UK, our team can assist with your Scan to CAD requirements.
